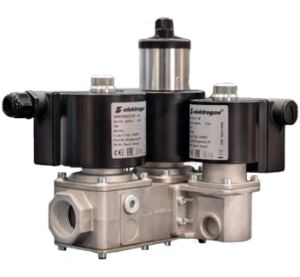

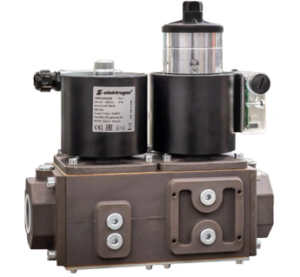

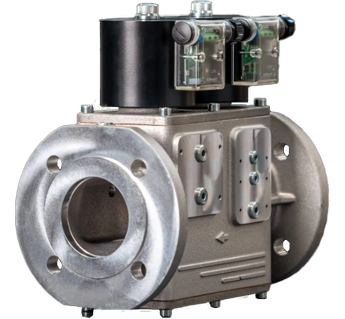

VMM Dual Solenoid Safety Shut-off Valve
The Elektrogas VMM is a dual-in-line solenoid valve suitable for air or gas flow blocking and releasing. Required in gas burners, atmospheric gas boilers, furnaces, and other gas-consuming appliances.
Compatible replacement for a Dungs DMV (Note: See Table for flange to flange or thread end to thread end – There are slight differences)
Download the Full Elektrogas Catalogue here –
POA
POA
Features
Product Details
- The valves are made from aluminium alloy die-cast, with a range for inlet/outlet connections from 3/4" (DN20) up to 3" (DN80.
- Sealings are made of NBR-based rubber, certified certified for use with gas (EN549)
- Pipe connections meet Group 2 and back-pressure sealing is compliant with class A according to EN161 requirements
- Suitable for use with air and non-aggressive gases included in the 1,2 and 3 families (EN437). Special versions for aggressive gases are available.
- The whole range can be provided in EX-proof execution, for use in Zones 2 and 22 according to 2014/34/EU Directive ATEX).
- The Valve is open only when energized. Loss of supply voltage closes the valve immediately.
- Suitable for heavy-duty cycle operation and qualified for continuous service (100% ED)
- Equiped with flow rate adjustment
- An incorporated fine mesh filter protects the valve seat and disc aswell as downstream components and prevents dirty contamination
- Provided with bilateral pressure ports on two side in all pressure chambers, to connect manometers, pressure switches, leakage tester or other gas equipment.
- The coils are provided with a terminal box or with ISO 4400 plugs
- Valves are 100% tested by computerized testing machineries and are fully warranted.
